V8 Submersible Pump Detail

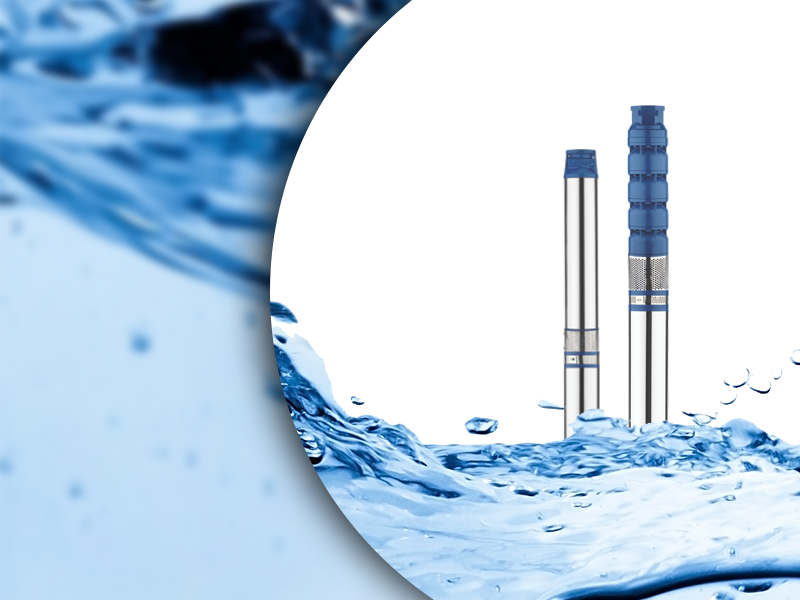

V8 Submersible Pump
Features
- - SS-304 Stainless Steel / Ci Casings stainless Steel Impellers.
- - 100ft Head per Stage in Specific Models.
- - Dynamically Balanced Rotating Parts.
- - CFD Designed Stage Casings and Impellers
Application
- - Hotels
- - Pressure Boosting
- - Small Industries
- - Gardens & Fountains
- - Civil Water Supply
- - Fire Fighting
Specification
| Power Range | - | 7.5 hp to 25 hp |
| Speed | - | 2880 rpm |
| Version | - | 380=415v, Three Phase, 50hz, A.c Supply |
| Max Total head | - | 350 meter |
| Max Flow Rate | - | 2500lpm |
| Nominal outlet size in inches | - | 2*3 & 4 Inches |
| Degree of protection | - | ip 58 |
| Max outer dia in mm | - | 184 mm |
| Direction of Rotation | - | Anti-clockwise form viewing top |
| Mini. Cooling flow along the motor | - | 0.15m/Sec |
| Duty | - | S1 ( continuos ) |
| Method of Starting | - | t.p., Dol up to 5.5 kw,sd up to 26 kw |
| Max Starts per hour | - | 12 times |
