V6 Submersible Pump Detail

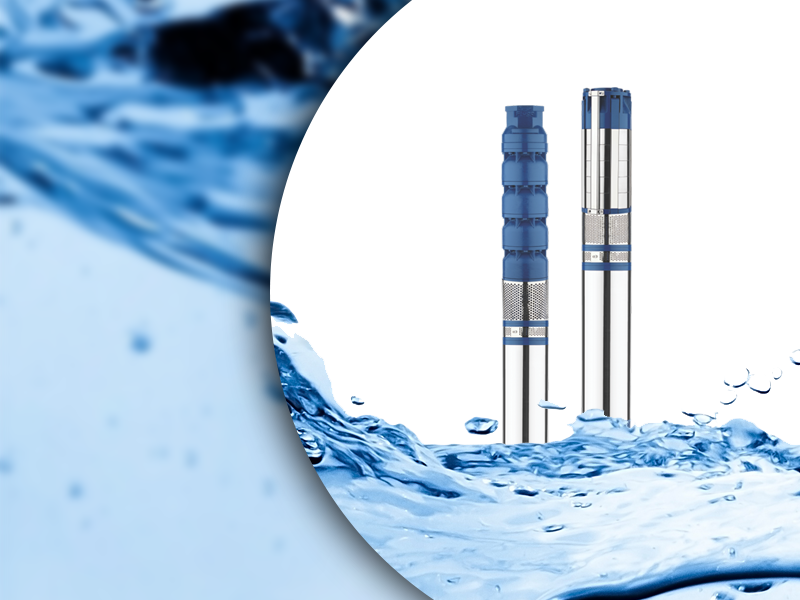

V6 Submersible Pump
Features
- - SS-304 Stainless Steel / Ci Casings stainless Steel Impellers.
- - 50ft Head per Stage in Specific Models.
- - Dynamically Balanced Rotating Parts.
- - CFD Designed Stage Casings and Impellers
- - Unique Single Phase Stainless Steel Motor Body Design -More Strength.
- - Designed for Wide Voltage Fluctuations.
Application
- - Houses
- - Nurseries
- - Hotels
- - Gardens
- - Small Farms
- - Fountains
- - Small Industries
Specification
| Power Range | - | 1.5 kw - 18.5 kw (2hp - 25hp) |
| Speed | - | 2880 rpm |
| Version | - | 200=240v, s.p., 380=415v, tp, 50hz, A.c Supply |
| Max Total head | - | 450 meter |
| Max Flow Rate | - | 1400lpm (84m3/h) |
| Max cutter Dia in mm(motor) | - | 89 & 97 mm |
| Max cutter Dia in mm(pump) | - | 90 mm |
| Nominal outer size in inches | - | 2.2", 3&4 Inches |
| Degree of protection | - | lp58 |
| Max outer dia in mm | - | 143 mm |
| Direction of Rotation | - | Anti-clockwise form viewing top |
| Mini. Cooling flow along the motor | - | 0.15m/Sec |
| Duty | - | S1 ( continuos ) |
| Method of Starting | - | S.p., capacitor start and capacitor run t.p., Dol up to 5.5 kw,sd up to 26 kw |
| Max Starts per hour | - | 12 times |
